800*600mm Manual Feeding CTP Plate Machine Prepress Solution For Offset Printing

Product Categories

Hangzhou Ecoographix Digital Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 800600mm Manual Feeding CTP Plate Machine Prepress Solution For Offset Printing
Brand: ECOOGRAPHIX
Price: 40000 USD

Brand Name : ECOOGRAPHIX

Model Number : T400A-NS

Certification : ISO, CE

Place of Origin : China

MOQ : 1 set

Price : usd 40000 per set

Payment Terms : L/C, T/T

Supply Ability : 100 sets per year

Delivery Time : 30 days

Packaging Details : wooden case with protective design

Model : T400A-NS

Type : thermal CTP machine

Max. plate size : 800*660mm

Min. plate size : 300*300mm

Speed : 16/22/28 pph

resolution : 2400 dpi

power : 1.5 kw

Applicable plate : thermal CTP plate

Contact Now

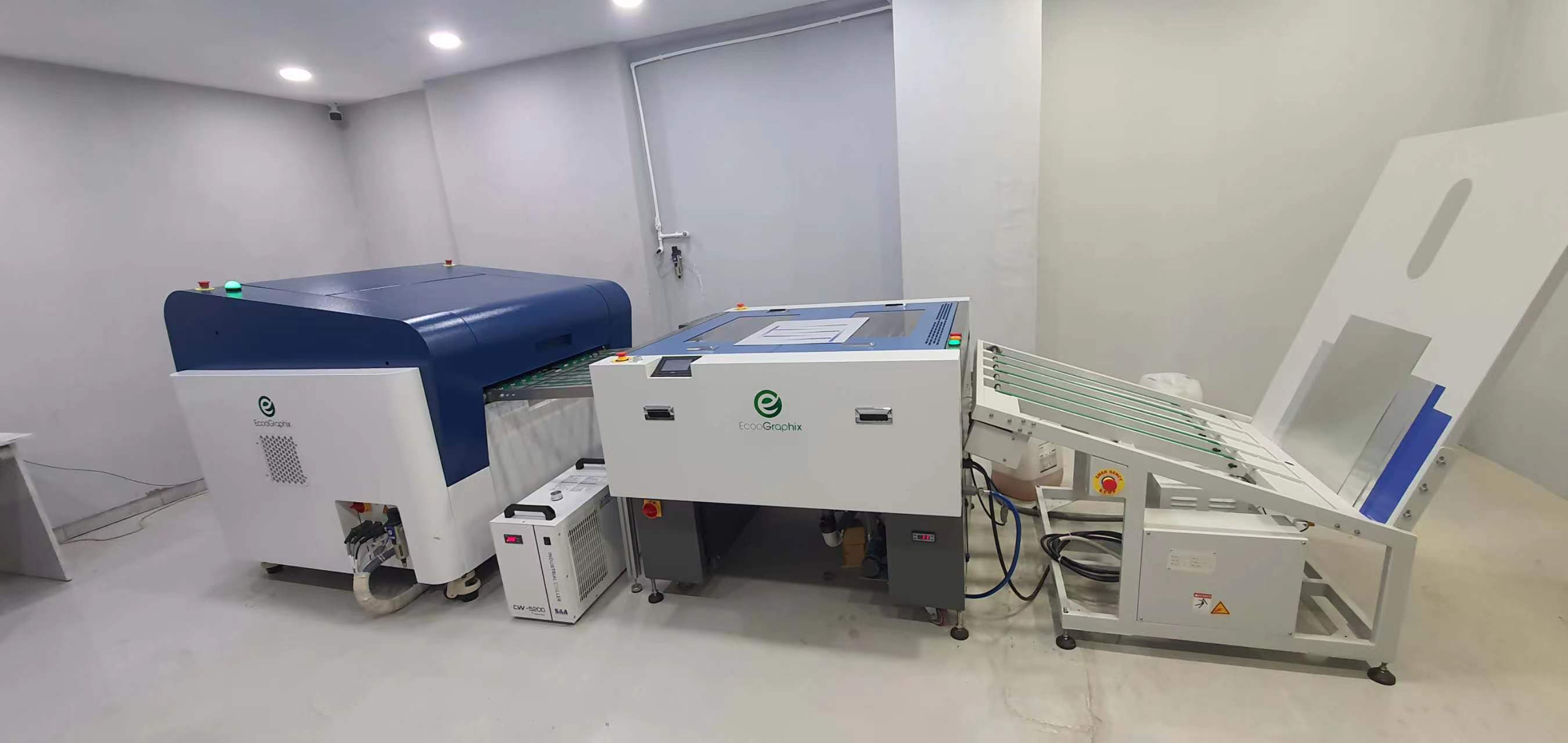

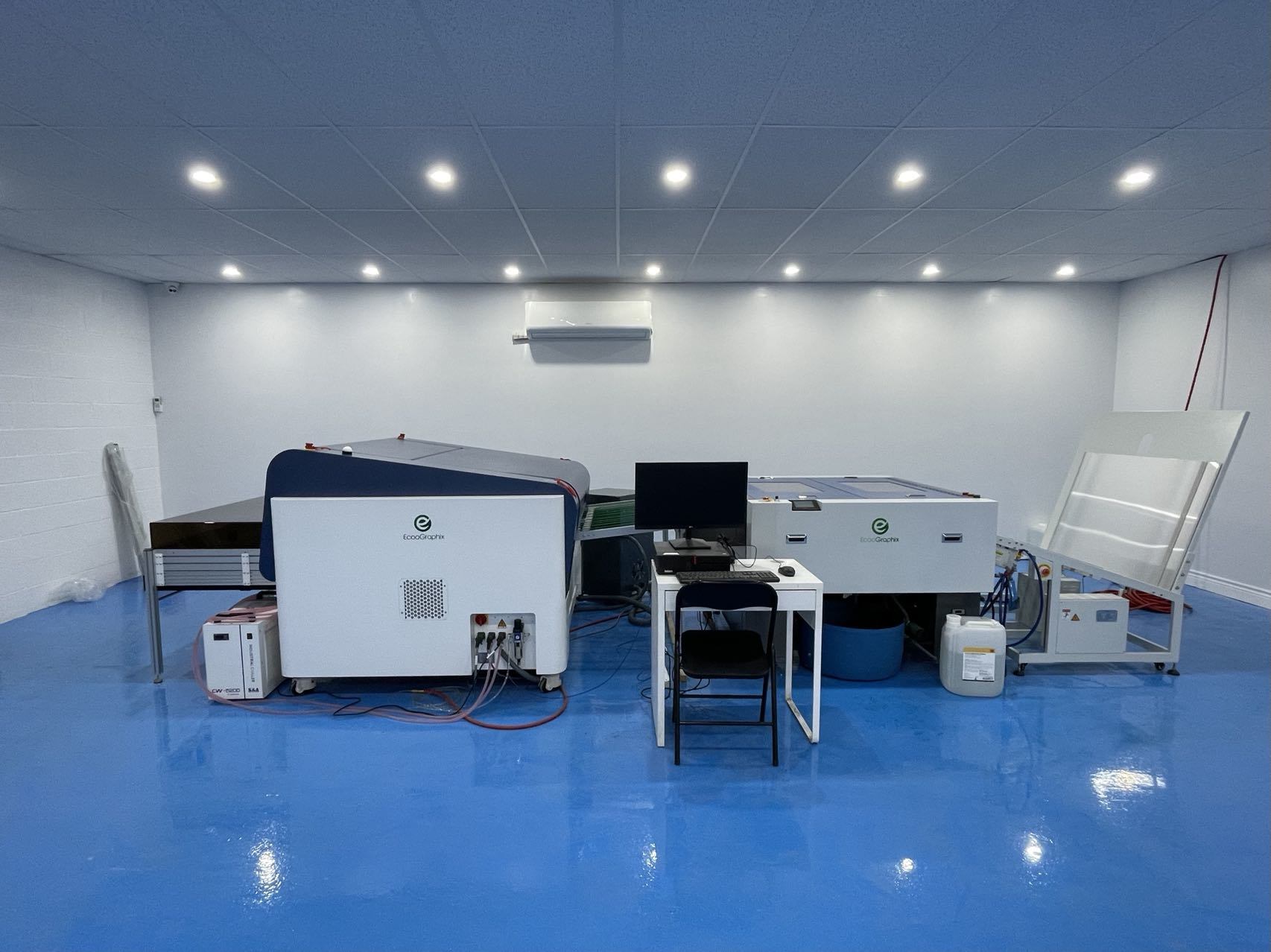

Full prepress solution line for offset printing, including manual feeding thermal CTP machine, inline processor and inline stacker

800*600mm Manual Feeding CTP Plate Machine Prepress Solution For Offset Printing

ECOO T-400Q Series Automatic CTP Specifications
Model		T-400QS
Exposing Method	External Drum
Imaging System		32-channel
	Discrete 830nm laser diode
Throughput	50 pph for 745*567mm size,1200 dpi
	745 x 567mm, 2400dpi
Plate Sizes	Max.800mm x 660mm Min.300mm x 300mm
Media Type	positive thermal CTP plate
Plate Thickness	0.15mm to 0.30mm
Resolution	Standard: 2400 dpi or 1200 dpi
Repeatability	0.01mm
Interface	Optical Fiber(Fiber-way)
Plate Loading	Manual loading
Inline punching System	Optional: internal punching (maximum four sets of plate holes),
Net Weight	1300kg
Machine Size (WxLxH)mm	1450x1950x1290 (additional 600mm length for conveyor to wash unit)
Power Supply	CTP(single phase:220V, Max power(Peak Value): 4KW) Simplified Autoloader(single phase:220V; Max power(Peak Value): 900W))
Environment	recommended:21-25℃, Max.18-26℃, humidity:40-70%

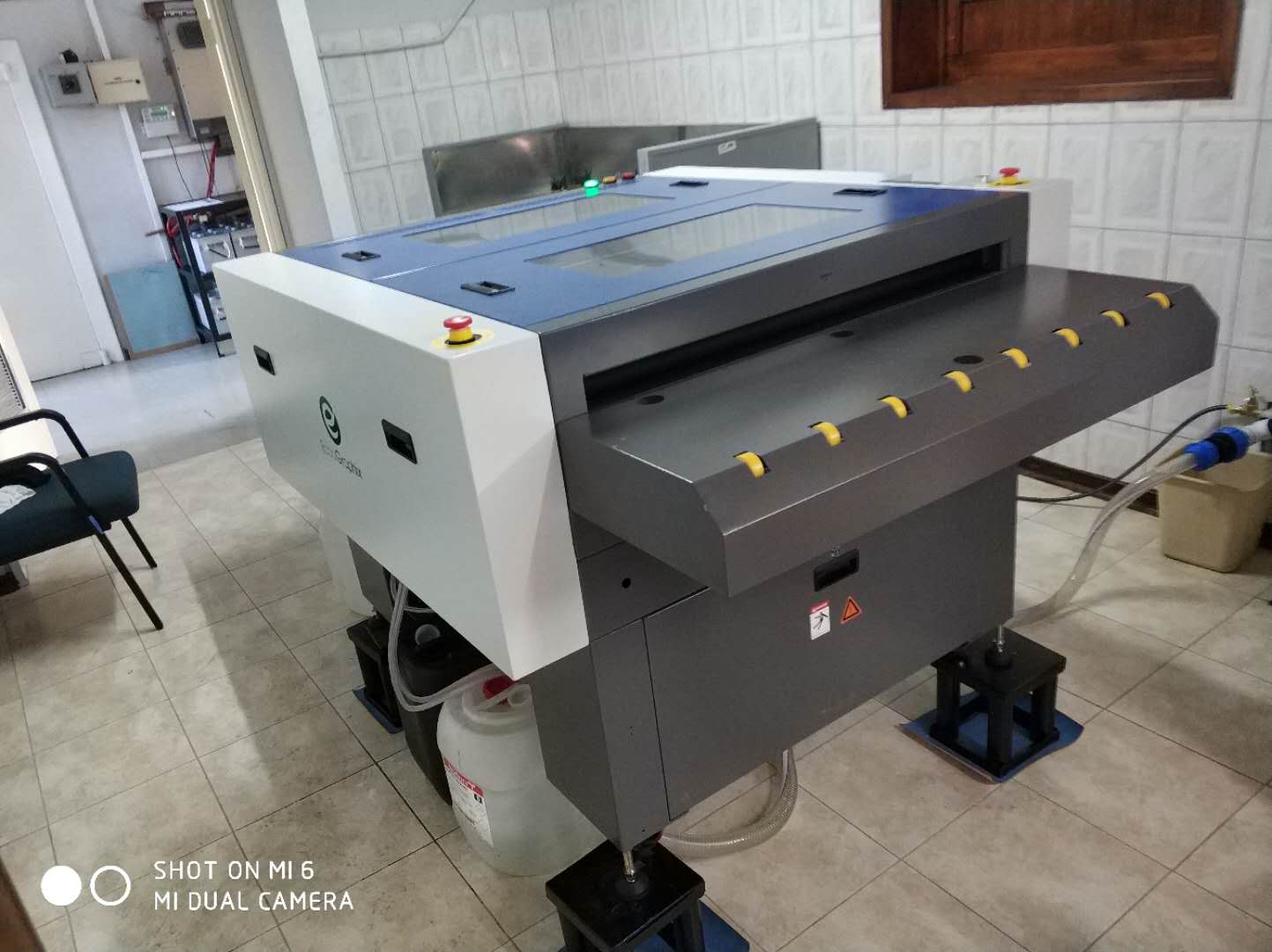

Model	P-900
Page Size	The max width 900mm, The min width 280mm
Plate Thickness	0.15mm to 0.40mm
Processing power	Speed adjustable (10 to 60 seconds) 400-1000 mm/minutes
Temperature	10 to 45 ℃ can be adjusted ( automatic temperature control, cooling system)
Developing capacity	46 L
Drying temperature	20-65 ℃ can be adjusted
Electricity source	220 V (208V-240V) single-phase 50-60HZ
Work rate	4 KW
Weight	355 KG

Workflow: compose, copyrighted

800*600mm Manual Feeding CTP Plate Machine Prepress Solution For Offset Printing

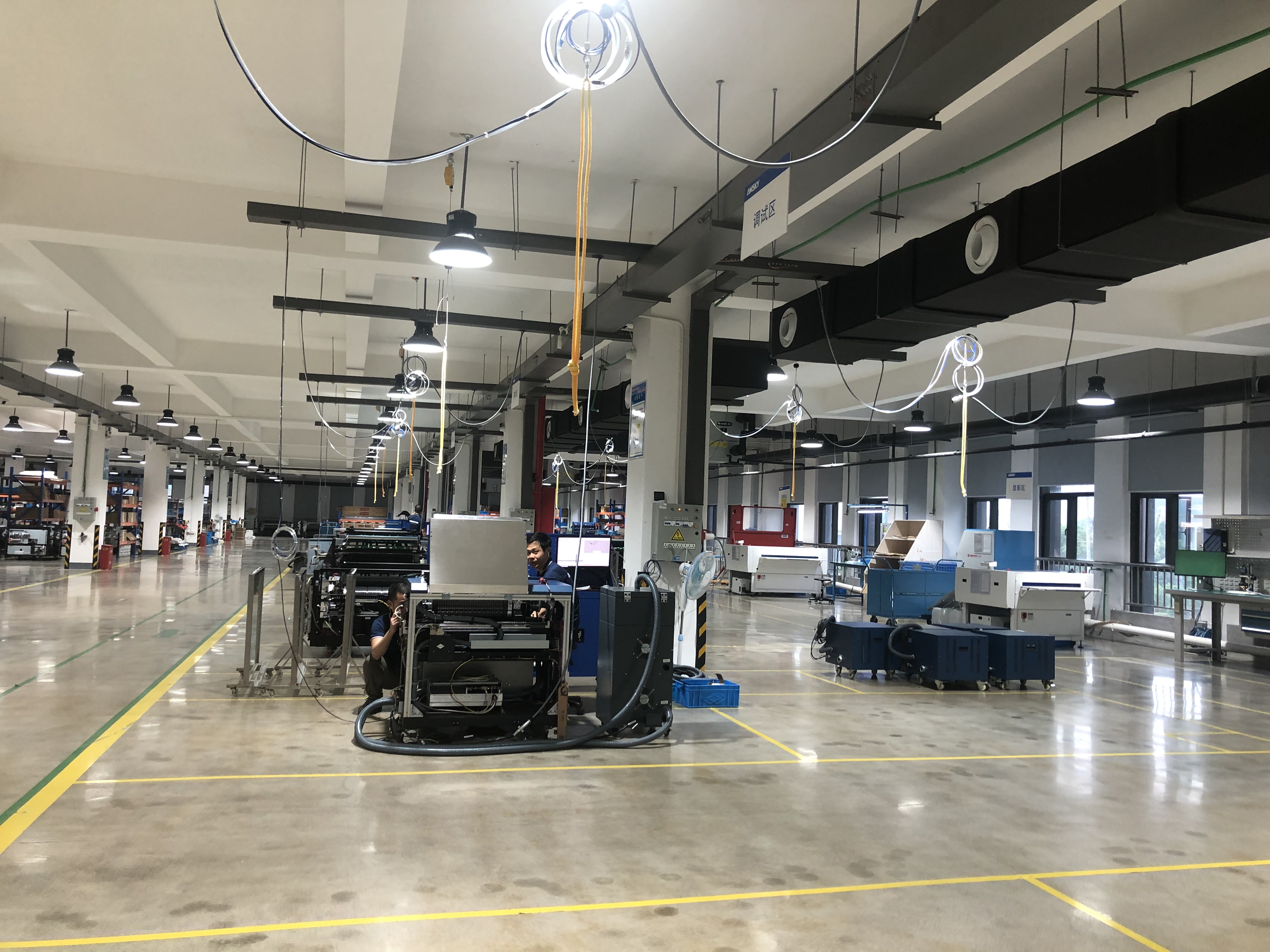

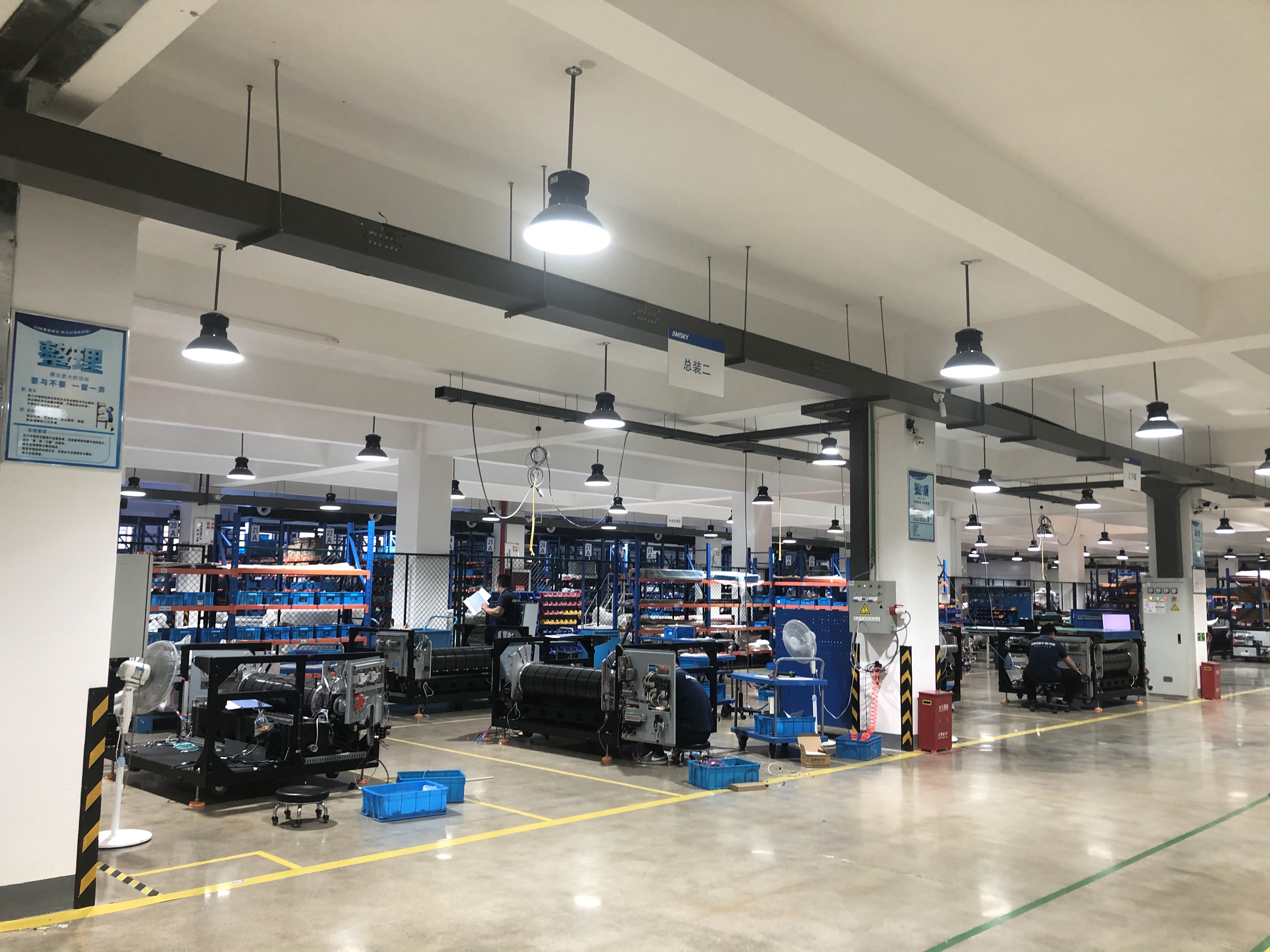

Machine side view and factory view

800*600mm Manual Feeding CTP Plate Machine Prepress Solution For Offset Printing
