Product Parameters:
| Model | DX1800 | DX2800 | DX4800 | DX2000 |
| Film dimensions(mm) | 1320mm/ 1120mm/ 940mm × 914mm / 760mm / 660mm | 940mm/ 812mm × 660mm - 508mm | 635mm × 457mm | 2000mm × 1200mm (optional) |
| Scanning resolution | 1500dpi---4000dpi (optional) | 600dpi---4000dpi (optional) |
| Scanning mode | External drum, broad band laser scanning with high speed |
| Repeatability Precision | ± 0.01mm | ± 0.02mm |
| Operation mode | Full automatic, 60m roll films with film processor, without dark room | Half automatic, single piece of film loading, with dark room |
| External dimensions | 2710mm×1600mm×1160mm | 2580mm×1360mm×1180mm | 2390mm×1060mm×1050mm | 2050mm×1040mm×1240mm |

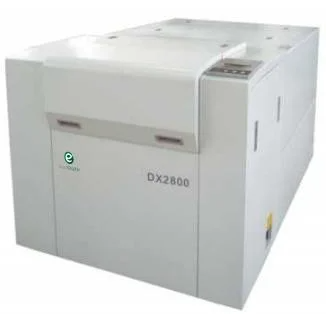

Product Description:
The full imagesetter includes CTF machine, online processor, driving computer and RIP 4.0 Software.
Feature:
Ecoo Laser Imagesetter is high precision, full automatic.
Laser imagesetter is without any dark room, with full automatictity operation during whole process, grid reverting exactly and high precision resetting and so on.
Also it is the ideal choice of large plate making center , news printing, circuit printing and escutcheon trade.
This imagesetter could work well with all below types of film:
Thickness: 0.1mm
Emulsion: outside
Inner diameter: 72mm
Spec: HeNe red laser sensitive, hard flange
FAQ:
1. What kind of laser heas is this machine using?
It is semiconductor laser head, which is more durable.
2. What machines do the imagesetter system have? Shall the buyer buy other supporting machine?
This system includes Imagesetter, with online processor, with Eagle 4.0 RIP software, driving computer. No need of other supporting devices purchasing.
3. What is installation and training?
We prefer remote installation online with the assisstance of our technical team. But if customer requires local installation, our engineer will fly as soon as possible the buyer should take the cost of round trip freight and local accommodation and meal.
4. Do you have other models to suit for different formats?
Yes, we have other formats, like DX1800 to handle size 1320mm/ 1120mm/ 940mm × 914mm / 760mm / 660mm, and DX2000 to handle with 2000mm × 1200mm. Feel free to let us know your demanding formats.
Product Tags:
|
|
Graphic Art Film Making Machine Computer To Film CTF Laser Imagesetter Images
|
