UV Coating Machine model: Ecoo-SD-1060
The High-Speed UV Spot and Overall Coating machine operates at a maximum speed of 9000 sheets per hour using an upper-swaygripper-pass-sheet method. Its UV curing system is equipped with a Teflon conveying belt which ensures higher speed, precise orientation, higher efficiency in UV curing, and lower power consumption. With this machine, you can achieve high-speed production and quality UV coating.
By using a UV coater and a Teflon belt, we can ensure that sheets are treated without causing damage or deformation to the grippers. This prevents any potential maintenance issues and allows for easy upkeep. Plus, we can rest easy knowing that high temperatures from UV light won't cause any harm. All in all, this solution makes for a smoother and more efficient process.
1. High-Speed Feeder:
Equipped with four suction cups and four forwarding suction cups, our feeder ensures smooth and efficient sheet feeding.
2. Sheet Transferring Unit:
Our upper swing sheet transferring method guarantees precise and seamless transfer of sheets at high speed to the pressure cylinder.
3. Varnish Supply
Enhanced Varnish Delivery SystemOur advanced varnish delivery system is equipped with steel and rubber rollers, along with a metering roller that allows for easy control over varnish consumption and volume. Additionally, our innovative doctor blade design ensures consistent and precise application of the varnish, meeting the demands of your products. (Varnish consumption and volume can be determined by the LPI of the ceramic anilox roller.) With this system, you can operate smoothly and efficiently without any hassle.
4. Transferring Unit
The gripper transfers sheets from the pressure cylinder and the air volume blowing function ensures smooth and scratch-free transfer.
5. Conveying Unit
The upper and lower conveyor belts gently curve thin sheets for smooth delivery without any surface damage.
6. Sheet Delivery
The Sheet Delivery system is designed to make sheet pile delivery effortless and efficient. It uses an automatic pneumatic patting mechanism that is controlled by a photoelectric detecting sensor to ensure that sheets are stacked neatly. Additionally, the electronic control allows for the safe and quick retrieval of sheet samples for inspection. With this system in place, sheet delivery is sure to be smooth and hassle-free.
Specification
| Model | Ecoo SD-1060 |
| Max. sheet size | 730x1060mm |
| Min. sheet size | 310X406mm |
| Max. coating size | 720x1040mm |
| Sheet thickness | 80-500gsm |
| Coating registration accuracy | ±0.2mm |
| Production speed | 9000sheets/hour |
| Weight | 8T |
| Dimension | 10460x2725x1930mm |
| Power | 44KW |
| Remark: Production speed depends on sheet weight, size, and quality |
Machine Spare Parts List
| No. | Description | Specification | Qty | Remark |
| 1 | Rubber Roller | Φ165.3×1118 | 1PC | The ceramic roller
is not equipped. |
| 2 | Doctor Blade | 0.15*50*1150 | 1PC | |
| 3 | Floor Pad Plate | | 12PCS | |
| 4 | Chain Link | 5/8" | 1PCS | |
| 5 | Chain Link | 1/2" | 1PCS | |
| 6 | Chain Link | 3/4" | 1PCS | |
| 7 | Tool Box | | 1PCS | |
| 8 | Inner Hexagon Spanner | 1.5,2,2.5,3,4,5,6,8,10 | 1SET | |
| 9 | Spanner | 12" | 1PCS | |
| 10 | Screw Driver | | 1PCS | |
| 11 | Screw Driver | | 1PCS | |
| 12 | Fixing Spanner | 5.5-7,8-10-9-11,12-14,13- 16,14-17,17-19,22-24 | 1SET | |
| 13 | Wooden Piece | | 4PCS | |
| 14 | Grease Port (Straight) | M6x1 | 5PCS | |
| 15 | Grease Pipe Jointer (Straight) | M6x1xΦ6 | 5PCS | |
| 16 | Grease Pipe Jointer ( curve) | M6x1xΦ6 | 5PCS | |
| 17 | Screw | M10x80 | 10PCS | |
| 18 | Operation Manual | | 1SET | |
| 19 | User Manual to Inverter | | 1SET | |
| 20 | Pump Instruction Manual | As per supplier | 1SET | |

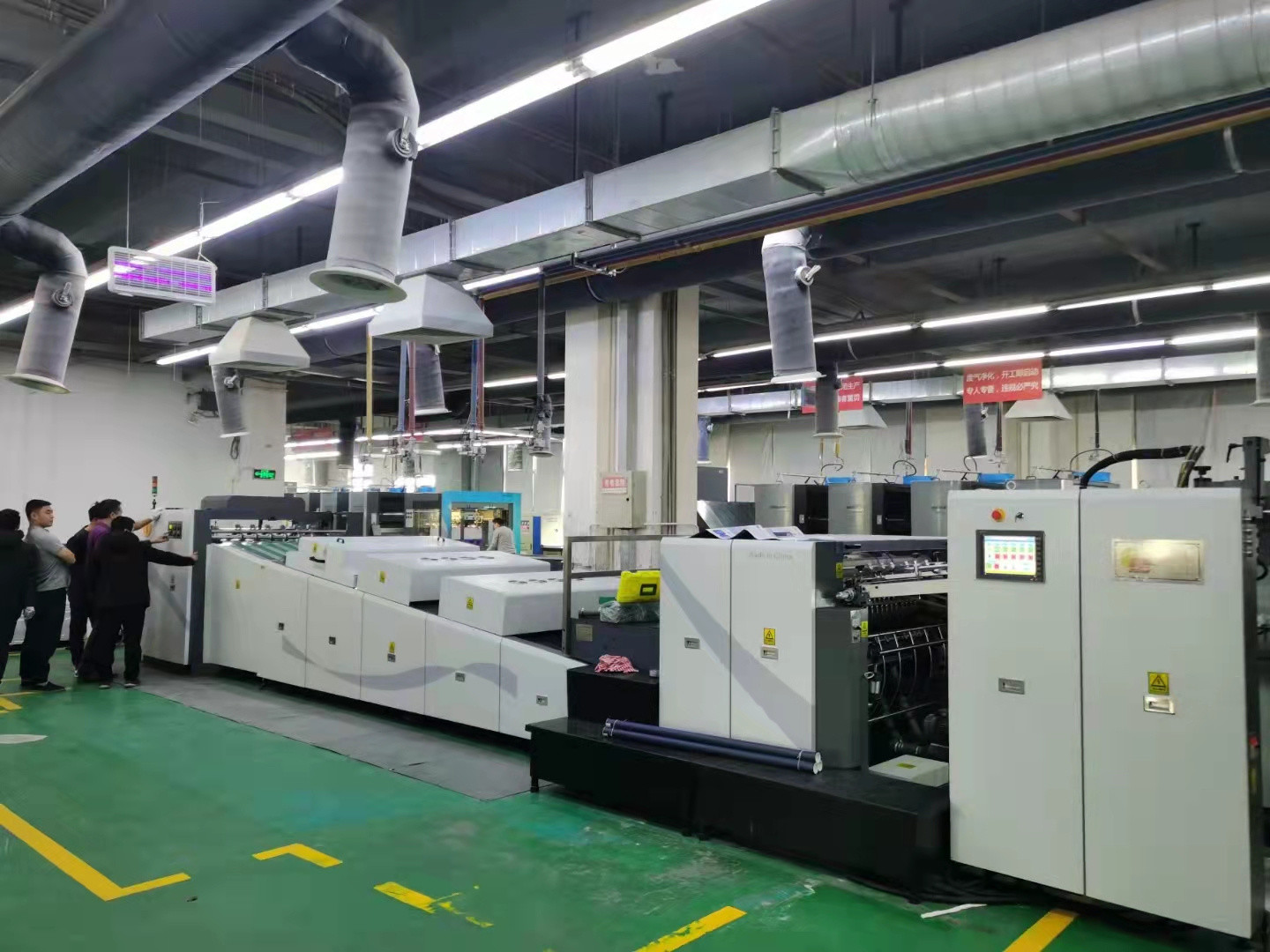

Producing And Packaging
FAQ
1. What is your warranty?
Normally 1 year.
2. What is the Lead Time?
Usually 45 days, and we will try our best to meet your demands.
3. What about the Installation and after-sales technician support?
Our engineer can help with the installation and provide the necessary training. The buyer should take the round airplane tickets and service charge and the local accommodation cost. If you have any problems or questions, we will be at your disposal 7x24 hours.
