4up Automatic Plate Making Machine Model: T-400QS
Product Description
Overall Performance Improvement
1. Full-automatically continuous printing with Inline punch
Equipped with automatic plate loading and unloading, automatic feeding and automatic punching function, it can workcontinuously without interruption to maximize the performance.
2. Automatic plate feeding cassette
Large capacity automatic plate feeding system can load 400 plates at the same time and support four specifications of automatic plate switching, which saves manpower and improves printing speed for you, easily achieving full-automatically continuous plate printing.
3. Motor direct drive Drum
The application of direct motor driving drum technology makes our star-up time accelerated and greatly improves productions efficiency.
4. Linear motor
In addition to high acceleration, linear motor drive also has extremely stable operation and high positioning accuracy, providing the guarantee for high precision and accurate printing.
Specification
Model: EcooSetter T-400Q Serie
Laser wavelength: 830nm
Plate: Thermal plate
Exposing Method: External Drum
Throughput: 25 plates per hour, 800mmx660mm 2400dpi
Plate Size: Max. 800 mm x 660mm Min. 300x300mm
Plate Thickness: 0.15mm, 0.3mm
Resolutions: 2,400dpi or 1200dpi Repeatability: 0.01mm
Interface: USB2.0
Size: 1450×1950×1290mm(W×L×H)
Power Supply: single-phase: 220V
Power Consumption: 4KW
Environment: recommended temperature: 21-25ºC
Relative humidity: 40-70%
| ECOO T-400Q |
| Model | T-400QS | T-400QX |
| Imaging System | External Drum 825nm laser |
| Output Speed | 25pph | 55pph |
| 800 x 660mm / 2400dpi |
| Plate Size | Max.800 x 660mm Min. 300mm x 300mm |
| Plate Thickness | 0.15mm, 0.30mm |
| Resolution | 2400dpi or1200dpi |
| Repeatability | 0.01mm |
| Interface | Optical Fiber |
| Inline puning | Optional: internal punching (maximum four sets of plate holes) |
| Size (WxDxH)mm | 1450x1950x1290mm
(additional 600mm length for converyor to wash unit) |
| Power Supply | CTP(single phase: 220V, Max power: 4KW)
Simplifiled Autoloader(single phase: 220V, Max power: 900W)
Multi-cassette Autoloader(single phase: 220V, Max power: 1100W) |
| Enviroment: | Recommended temperature: 21-25ºC; Relative humidity: 40-70% |

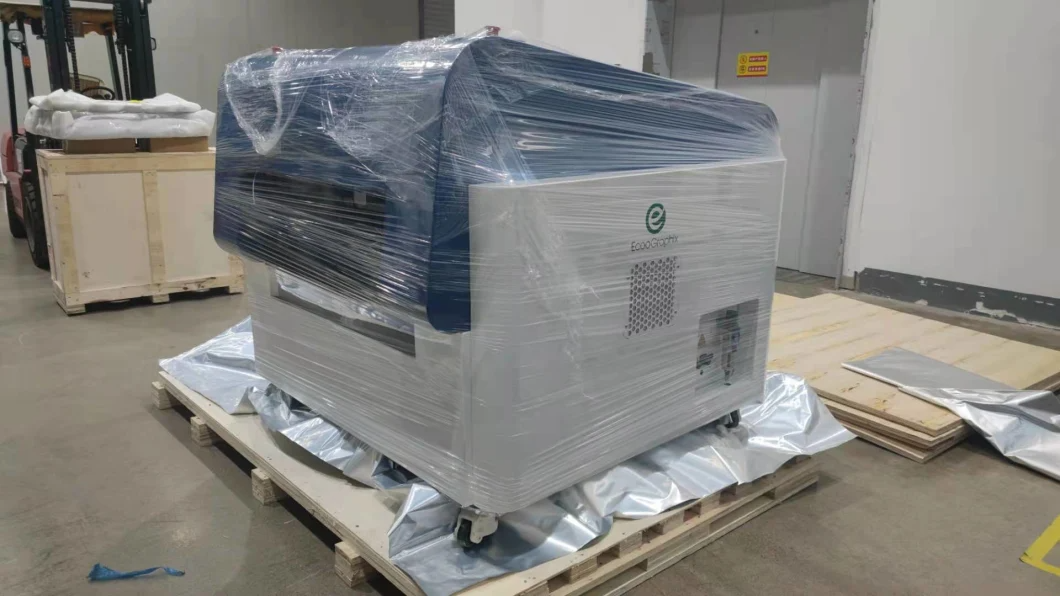

Producing and Packing

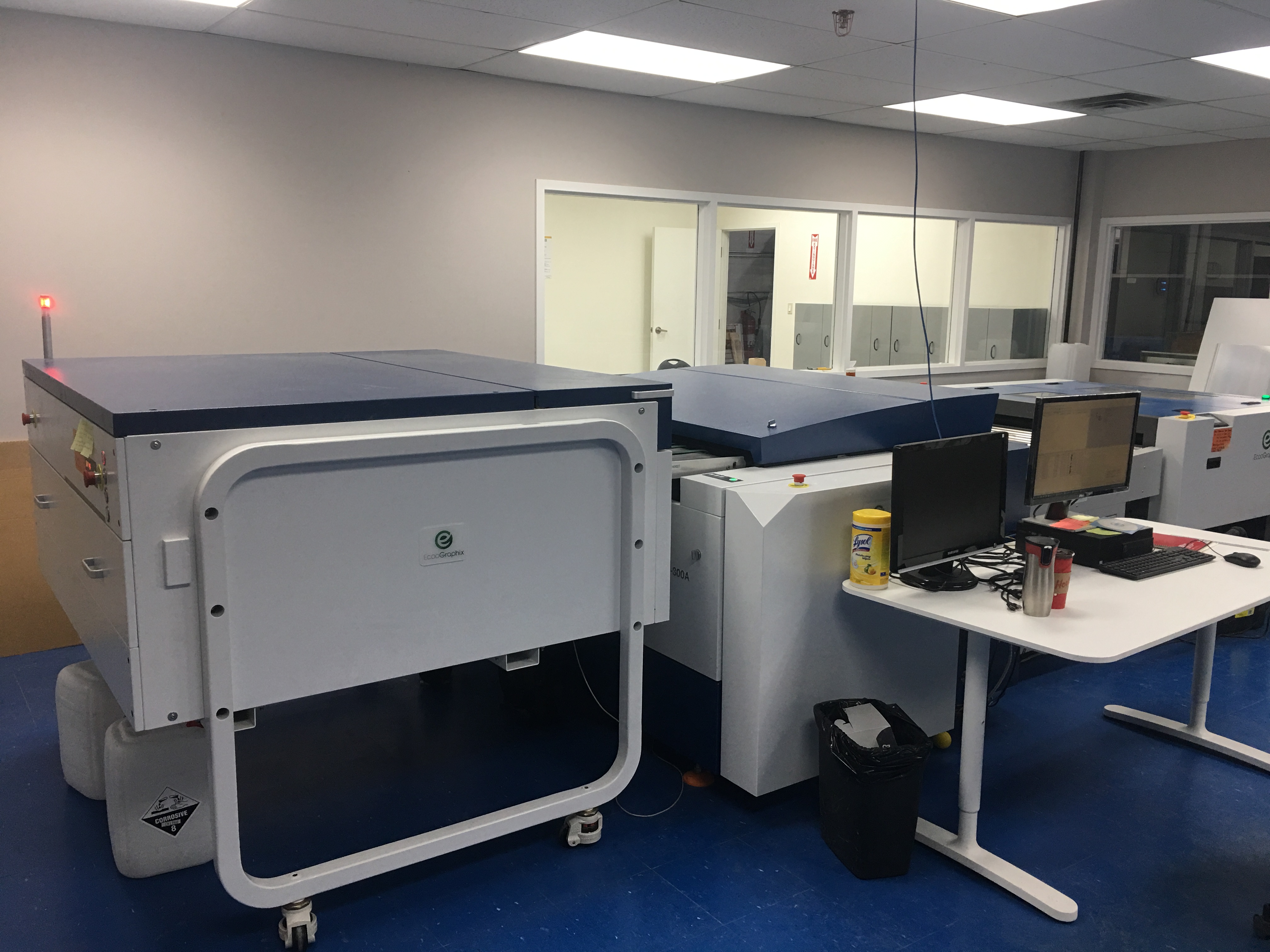

CTP Installation Worldwide
More details
FAQ
1. What are your main products?
Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP and CTCP, Flexo CTP, Processor, Offset Plates ,inks, Blankets, Postpress Packing equipments and so on.
There are over 3000sets CTPs installed worldwide. Our partners in USA, Canada, Mexico, Colombia, Turkey, Hungary, South Africa and so on are very pleased with our technician support service and product performance.
We also have five offset plates production lines producing the thermal CTP plate(single and double layers), positive CTCP plates(single and double layers) and chemistry free CTP plate.
You can get the prepress equipments and consumables all in one and no worry about the after-sales service from our company.
2. Where is your factory?
Our CTP machine factory is located in Hangzhou city, which is about 1.5 hour by train from Shanghai.
You are warmly welcomed to visit our factory!
3. What is your warranty for the CTPs?
Three years' Laser Head and main spare parts for the CTPs, One year for the Processor. If machine user uses our plate at the same time, we offer lifelong warranty.
4. What is the Lead Time?
Usually 20-30 days, and we will try our best to meet your demands.
5. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V9.
6. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours.
