Thermal Laser Diode CTP Imagesetter Machine For Prepress

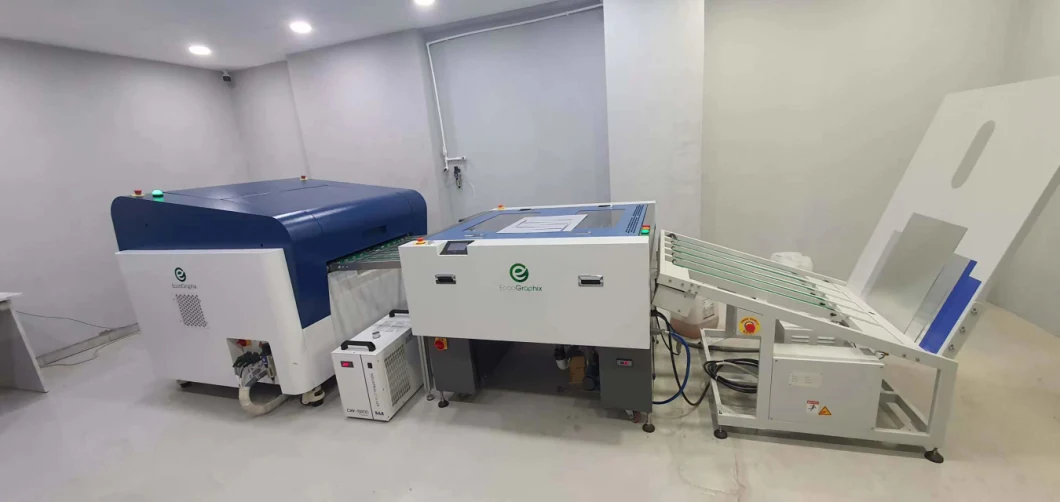

This T400Q is our prepress solution for commercial printing, booking printing and some package printing customers. It includes thermal CTP machine processor and stacker. It is full automatic from plate feeding to plate stacking after imaging and processing.

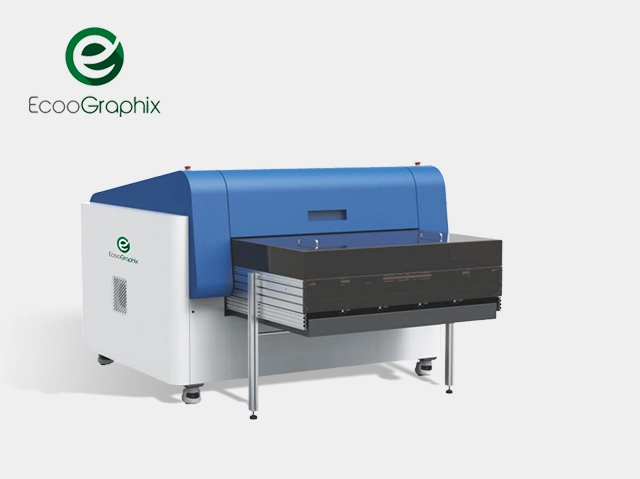

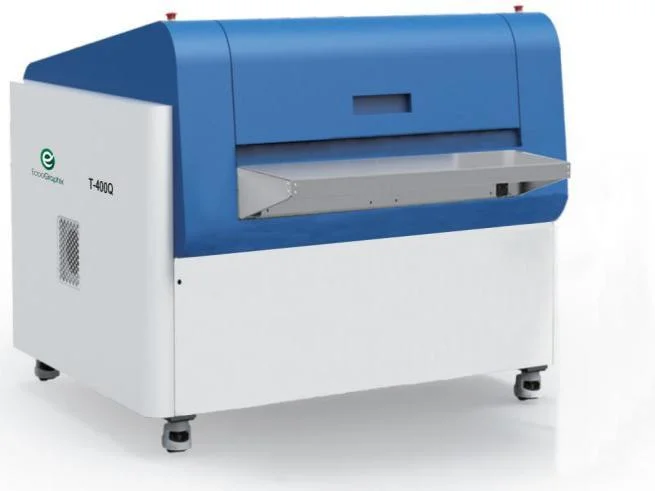

Thermal CTP machine: T400Q, with 3 speed for option. please find more technical data in next part.

Key features
Resolution: 2400 dpi or 2540 dpi
Laser wavelength: 830 nm
Imaging area: Max.800mm x 660mm Min.235mm x 335mm

Options:
1 plate feeding: with autoloader or without loader
2. punch system


Processor machine, P900, to process and dry the imaged plate

Key features:
Plate size: max. width 900mm, min. width 280mm
Speed: 400/1000mm per minute, speed adjustable
Developer capacity: 46 liter
Processing temperature: 10-45ºC
Drying temperature: :20-65ºC

Options:
work with independent machine or linked by conveyorer to form full automatic systems

Stacker: to collect the imaged and processed plate

Key features: collect and reserve the imaged plate from friction

Options: can be replaced by other textile basket

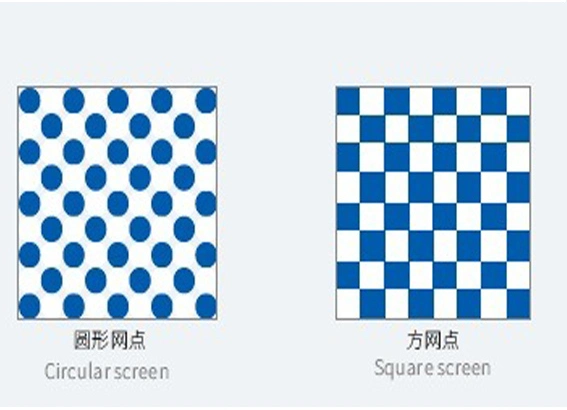

Square spot technology for option

More precise
Higher speed

If customer requires extrely high speed or extremely high resolution, you can consider the laser valve instead of the laser diodes. Laser valve could make square spot and can speed the machine as high as 55 pph.

1.what is the production time?
30 days to 40 days after receiving the down payment.

2. how about warranty?
we offer 3 year free warranty including all parts, laser and so on. Customers do not need to budget any penny on service and parts for 3 years. Iin addition, as you are using our plates, you will have extended lifetime warranty. This is a huge saving.

3. After sales service, like installation, training?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours.

4. About software?
The CTP software is included, but input software is excluded. We can offer copyright RIP. If customer has used CTP machine before, they do not need to buy another RIP.
