EcooGraphix Low-Chemistry Violet Offset CTP Plate Aluminum Plate
EcooGraphix Low-chemical Violet CTP Plate Ecoo-V can be used for newspaper printing.
It is an environmental friendly product. Compared with normal Violet CTP plate, Ecoo-V keeps original photosensitive features and printing compatibility.
| Model | ECOO-V |
| Plate Type | Low chemistry violet plate, negative printing |
| Application | Newspaper Printing |
| Substrate | Electro chemically grained and Anodized aluminum |
| Gauge | 0.20, 0.25, 0.30, 0.40(mm) |
| Maximum short grain width | Maximum width 1320 mm |
| Developer | Developing gum |
| Length of Run | Unbaked: 200,000 impressions;
Baked: 500,000 impressions(dependent upon image resolution, press,
press chemical, ink and paper conditions) |
| Plate setters Capability | All the main brands violet CTP in market, laser power no less than 30 mw |
| Aluminum | Standard 1050 Alloy |
| Exposure energy | 50-60 μj/ cm²(based on plate setter and developing condition) |
| Developing time | 20±3 sec |
| Developing Temperature | 28±2 ºC |
| Spectral Sensitivity | 405 nm |
| Resolution | 150lpi (2-98%), under 1800dpi, 25μm line can be produced. |
| Preheat | 95-121 ºC |
| Brush Speed | 100 rpm |
| Shelf life | 12 months under recommended storage conditions |
| Storage and handing | Store plates flat in their packaging, away from excessive cold, heat or high humidity. Recommended condition is: temperature 15_28ºC and RH between 30-70%; Handle with care, the maximum height is 1.2m'
Open the box under yellow light. Sealed the box with remained plate to avoid moisture. |
Features
Simplifying the processing, only 3 steps including preheating, developing, and drying.
Redusing chemical consuption, saving water.
Weak alkali developer maximumly avoid developing inconsistency due to exhausted developer.
It makes print wuality more stable.
Structure And Making
Plate Structure
Plate Making
Customer's Feedback
Producing and Packaging
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.
Certificates
FAQ
Q1: Can I get the sample ?
A: We are very glad to provide some sample for you to test. We usually provide 5-15pieces plates for free, but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.
Q2: What is the cost for the CTP plate sample freight ?
A: The Air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the Pick-up service from your local agent.
Q3: How long can the sample be ready ?
A: It usually takes about 3 days to prepare the sample.
Q4: Can I visit your factory ?
A: You are warmly welcome to visit our factory! Our company is in Hangzhou city, which is about 1.5 hours by train from Shanghai.
|
|

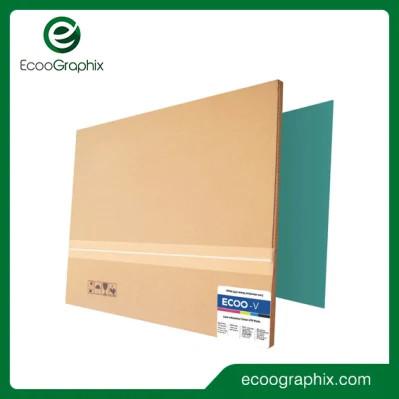

Negative Violet Photopolymer Digital Offset Printing Plate Images
|
