Highest Cost-Effecitve Environment-Friendly Ink for Offset Printing
ECOO-INK-F printing ink is suitable for printing packaging, advertisement, label, brochures and decorating products on art paper, coated paper, offset paper, cardboard, etc., especially suitable for single-color and multi-color printing.
Features
Environment friendly
Good water/ink balance
Rich in printing layer
Clear and complete in printing dots
Quick-drying performance, quick setting, quick turn
high density
General information
| Type | ECOO-IN-F |
Features | Printing speed: 8,000rph-10,000rph
Environment friendly
Good water/ink balance
Rich in printing layer
Clear and complete in printing dots
Quick-drying performance, quick setting, quick turn |
| Packing | 2.5 kg/tin, 6 tins/carton |
| Shelf Life | 3 years(from the production date); product against light and water |
Application | ECOO-IN-F printing ink is suitable for printing packaging, advertisement, label, brochures and decorating products on art paper, coated paper, offset paper, cardboard, etc., especially suitable for single-color and multi-color printing. |
| ITEM/TYPE | TACK
VALUE | FLUIDITY
(mm) | PARTICLE
SIZE (μm) | SETTING
TIME (min) | DRYING
TIME (hr) | SKINNING
TIME (hr) |
F
YELLOW | 6-7 | 35±1
| 15 | 4 | < 10 | >15 |
F
MAGENTA | 5.5-6.5 | 34±1
| 15 | 4 | < 10 | >15 |
F
CYAN | 6.5-7.5 | 35±1
| 15 | 4 | < 10 | >15 |
F
BLACK | 7-8 | 35±1
| 15 | 4 | < 10 | >15 |
| Tack Value | The value is measured in 1 minute by inkometer at 32ºC and 400rpm. |
| Set Time | Printing adapter, 157g art paper, the volume of ink-coating can be up to 0.125cc |
| Condition of test | Room temperature 25ºC, humidity 65%-75% |
| ITEM/TYPE | Light
Resistance | Heat
Resistance | Acid
Resistance | Alkaline
Resistance | Alcohol
Resistance | Soap
Resistance |
F
YELLOW | 4 | 5 | 5 | 4 | 4 | 4 |
F
MAGENTA | 3 | 5 | 5 | 5 | 4 | 5 |
F
CYAN | 7 | 5 | 5 | 5 | 5 | 5 |
F
BLACK | 7 | 5 | 5 | 5 | 5 | 5 |
| Light Fastness | 1-8 (weak-strong) |
| Others | 1-5 (weak-strong) |
Tips before ink processing and after processing.
Do not judge the color of ink by the looking into the package only. All inks appear in thick layer n the container darker and dirtier as in the print. You may mistake the black to the blue or red.
You may find bubbles in the ink which is nitrogen mixed in producing to exclude oxidative drying problems. Do not worry, the bubbles will disappear on the rolls of the inking unit and will not lead to printing problems.
During longer print interruptions the rolls have to be cleaned and ink in the ink duct has to been sprayed on with antioxidant.
Remove skin whenever you find in the opened container regardless how small the skin is.
Inks which was mixed with printing aids should not filled backed to the original ink.

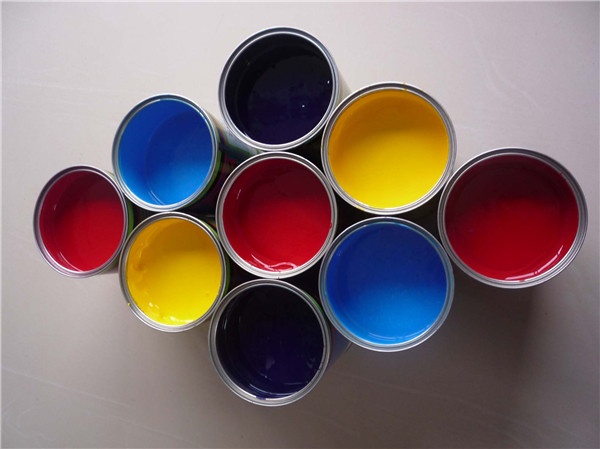

Package of our ink.
The normal package is in aluminum can per 1 kg or 2.5 kg, vacuumed to secure tightly sealing and safe transportation. 6 drums or 12 drums packed in a carton which has partition board to protect and fix each drum from collision. It is standard package with enough protective layers and reasonable design.

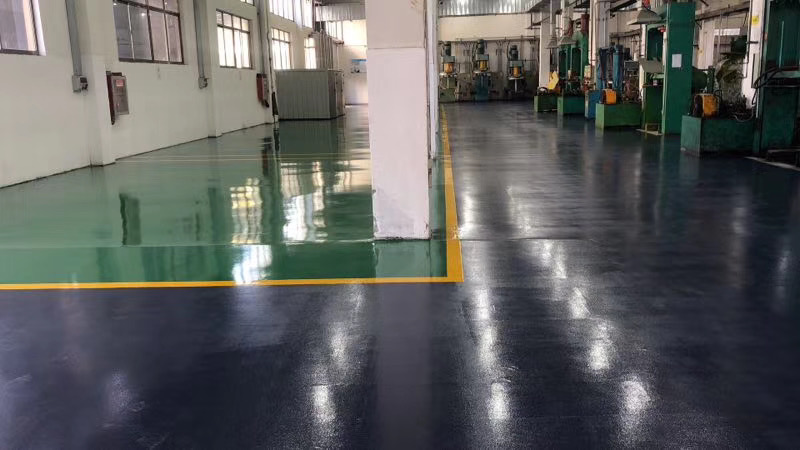

Our factory
